PIR Motion Sensor Board

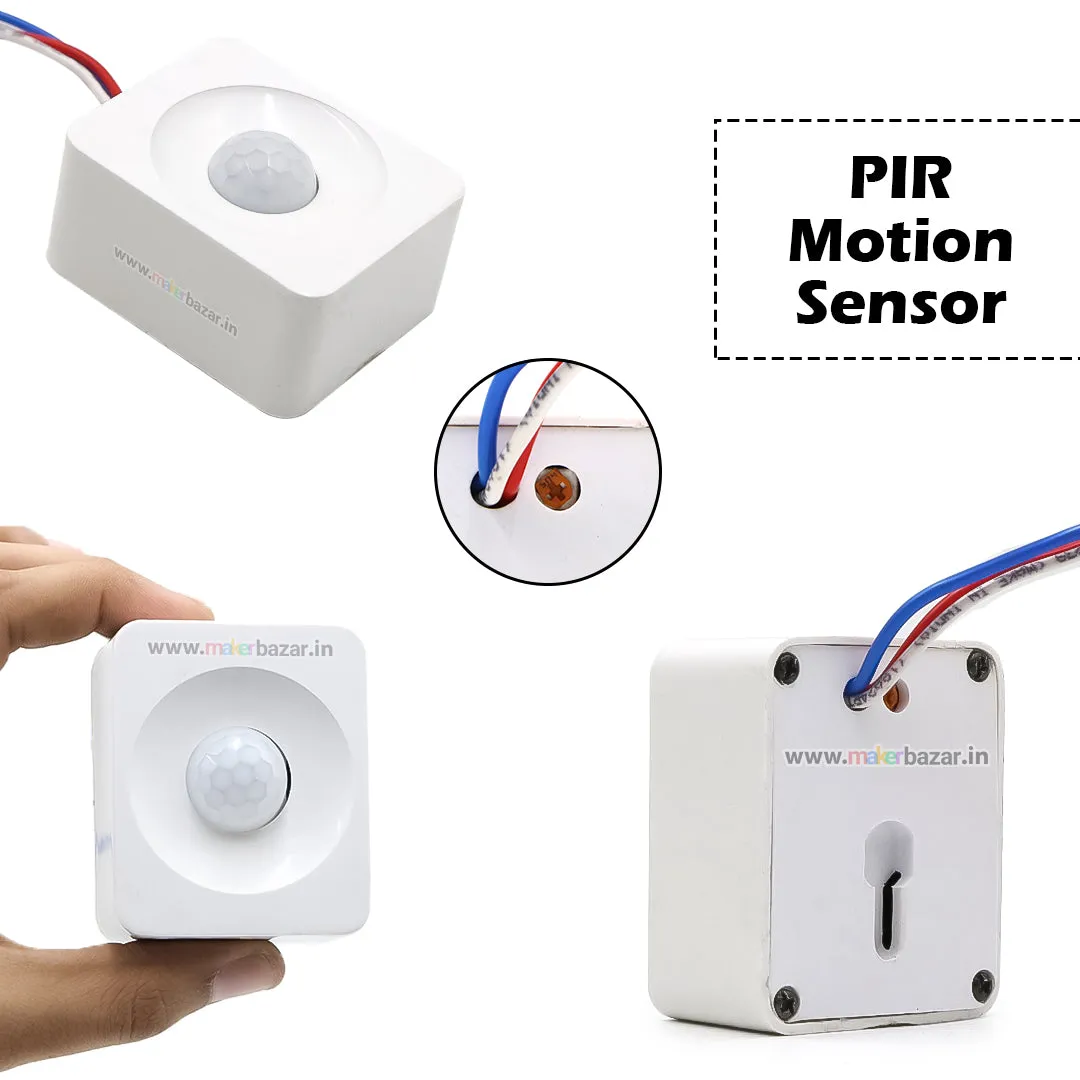

While a 230V PIR motion sensor module with an AC supply might have red, blue, and white colored wires, it's important to not rely solely on color coding for identification. Mains power wiring can vary depending on location and regulations, and miswiring can be dangerous. Unless you are a qualified electrician, refrain from working with mains power.
- Electrical Code Variations: Color coding standards can vary by country or region. What applies in one place might not be the same in Faridabad, India. A qualified electrician familiar with local codes ensures correct wiring.
- Manufacturer Specific Schematics: The specific wire colors used on a 230V PIR motion sensor module can depend on the manufacturer. Consulting the installation manual or contacting the manufacturer for clarification is crucial for safe wiring.
- Safety Measures: A qualified electrician can properly isolate the circuit, test for voltage, and ensure safe grounding practices are followed during installation.
