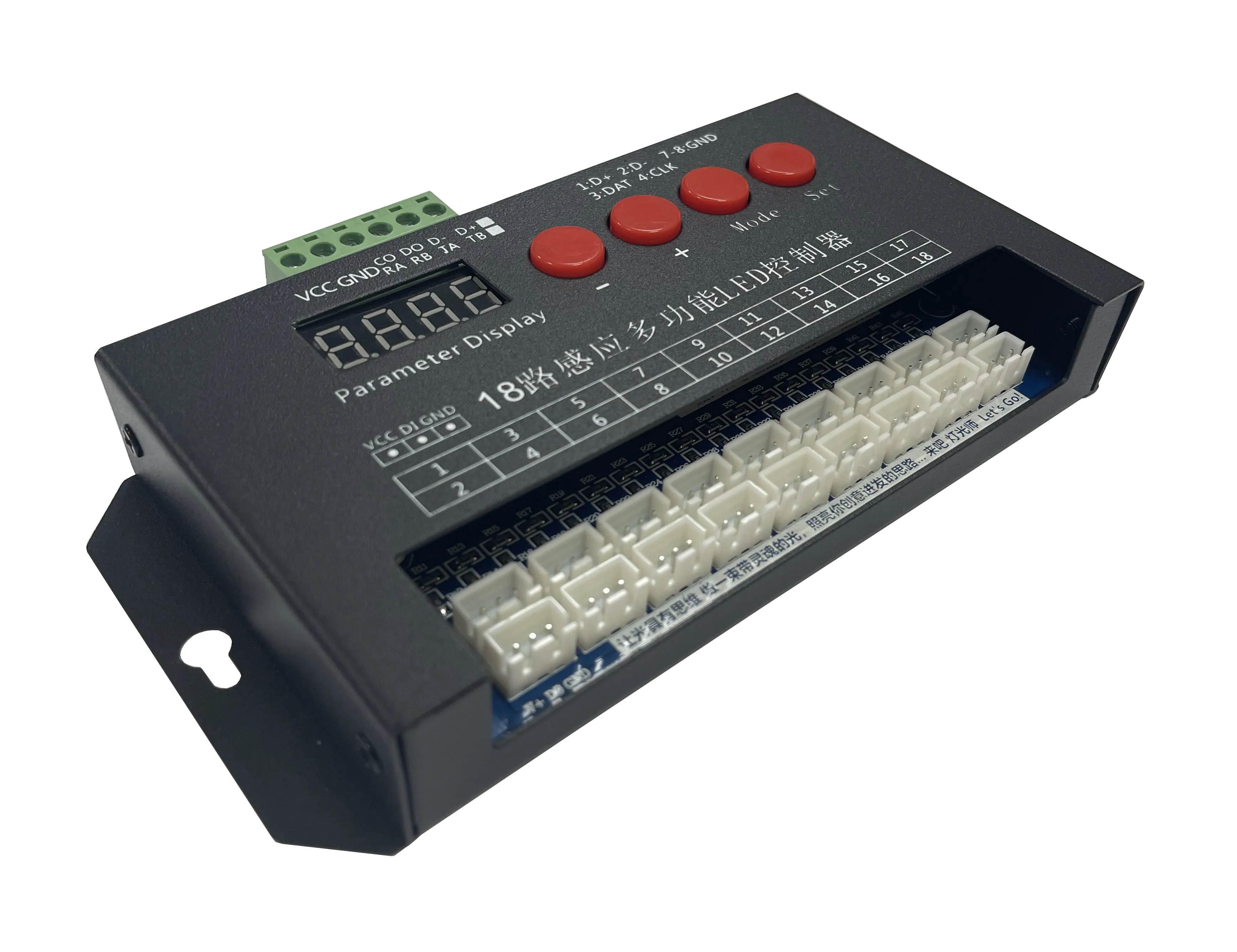

FluxTech – 18C Staircase LED Motion Sensor Controller, DC 5 - 24V Strip Controller for Flexible Programmable RGB Pixels or Monochromatic LED Strip Perform Cascading Effect for the Stair Light
- A Single unit can control Max up to 40M Staircase Strip Light and 2 channel RGB or Single colour programmable Pixels LED Strip light
- DC5 – 24V Wide Voltage work, can control exposed lights, modules light bar.

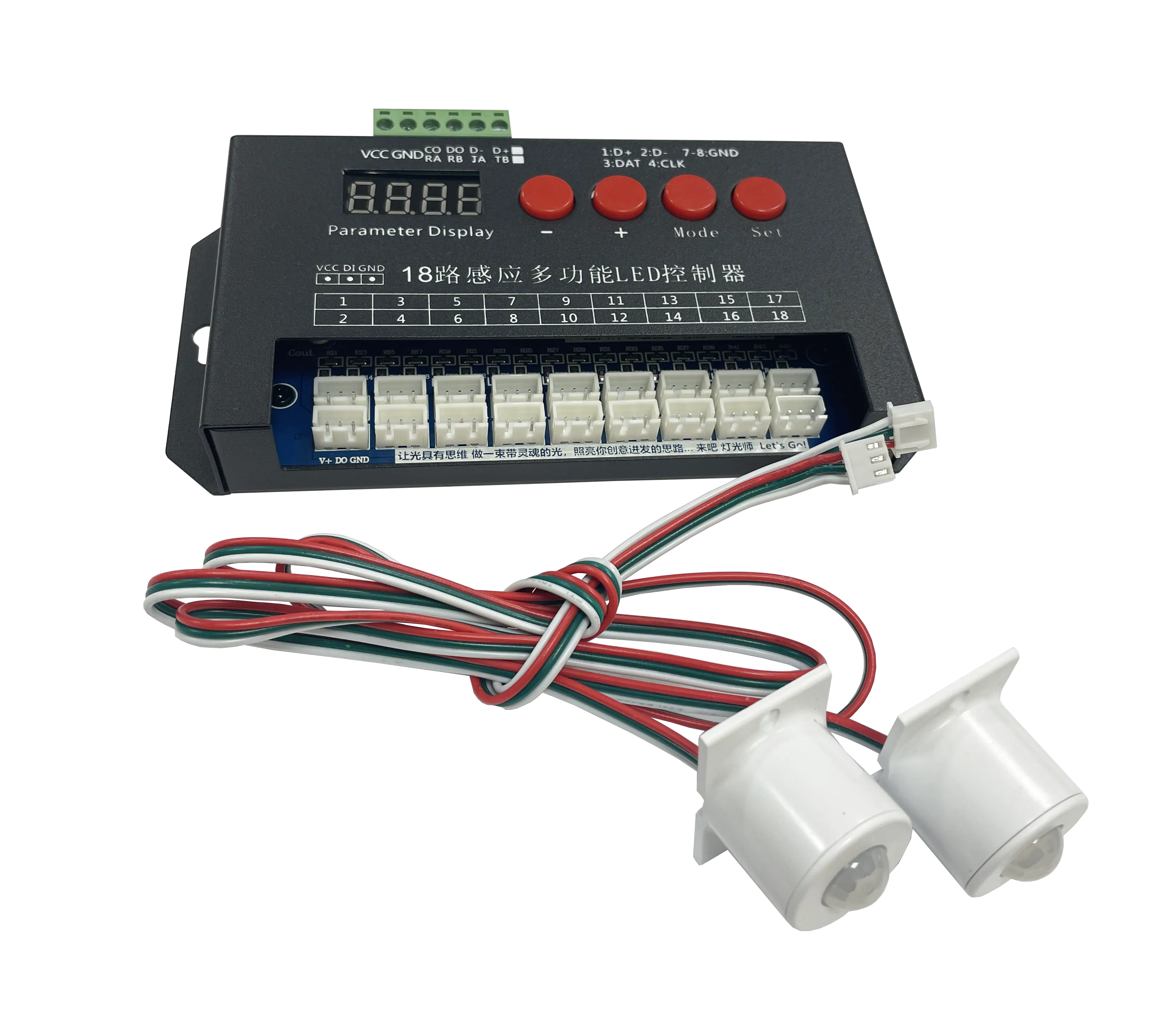

- The controller has two human-sensing device interfaces, which are marked with Sensor Connection
- The light bar connected to the place marked "Connect the addressable Led Strip" is the water light bar on the wall of the staircase. It has two, "OUT1" and "OUT2" respectively have 3 connections, and "DO" is connected to the dot Signal line. "GND" is connected to the negative wire of one outlet of the signal wire. A total of two can be connected to a 12V 2811 light bar with a point of 40 meters (100 pixels per 5 meters of light bar).

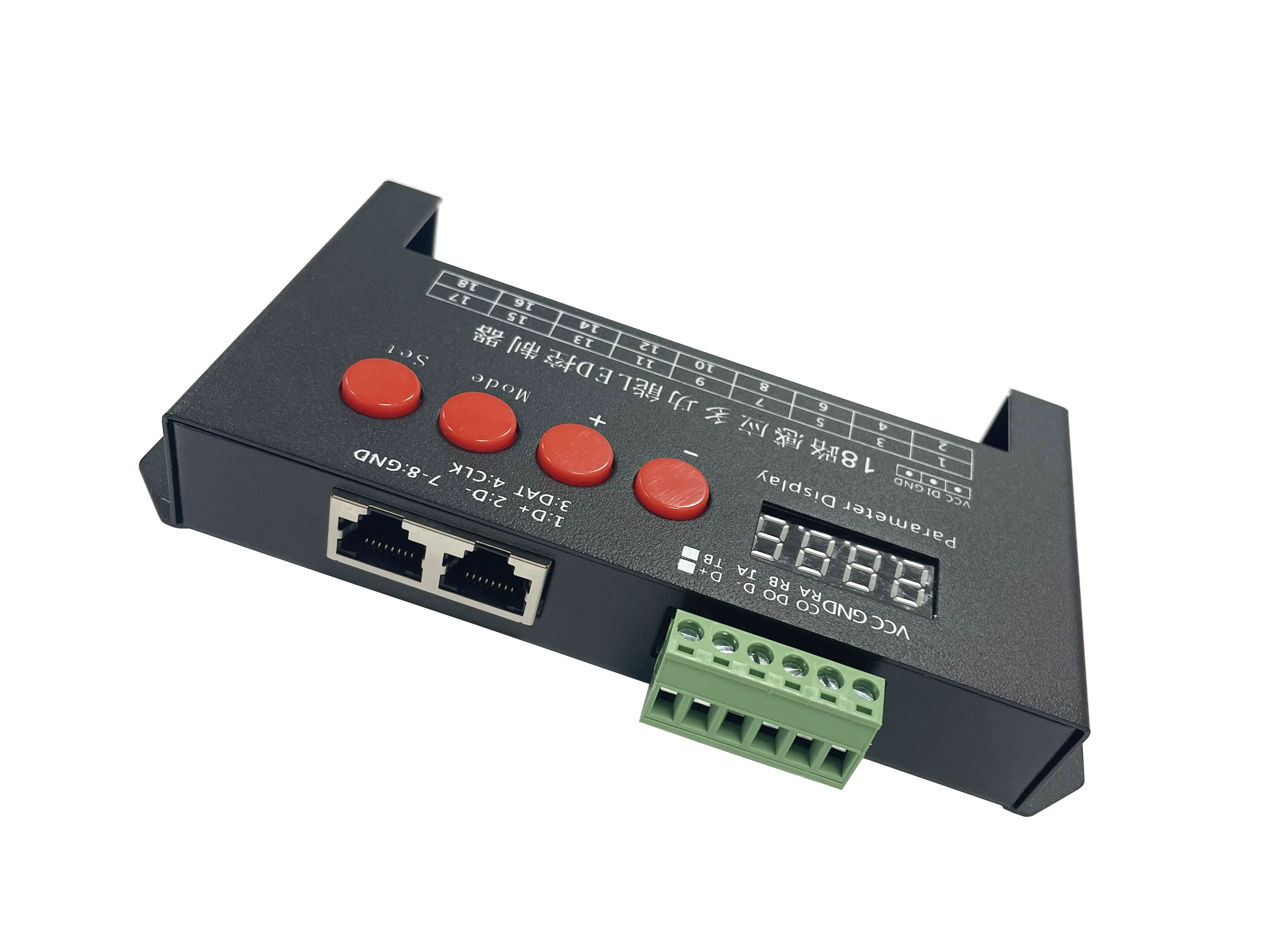

- The four red buttons on the device, "-" " " "MODE" "SET". They are to adjust the number of steps controlled by the equipment, the lighting and extinguishing speed of the light bar, the color selection of the light bar on the side of the stairs, the length and speed of the flowing water. These four buttons are required to cooperate to complete.
- Operated Voltage: DC 5 – 24V
- Max Pixel control: 800 Pixel (40M each pixel 50mm )
- Rated Power: 2W
- Max Current for Each Circuit: <2A
- Working Temperature: - 30oC – 85oC
