Requires a minimum of 12" of wall depth for installation.

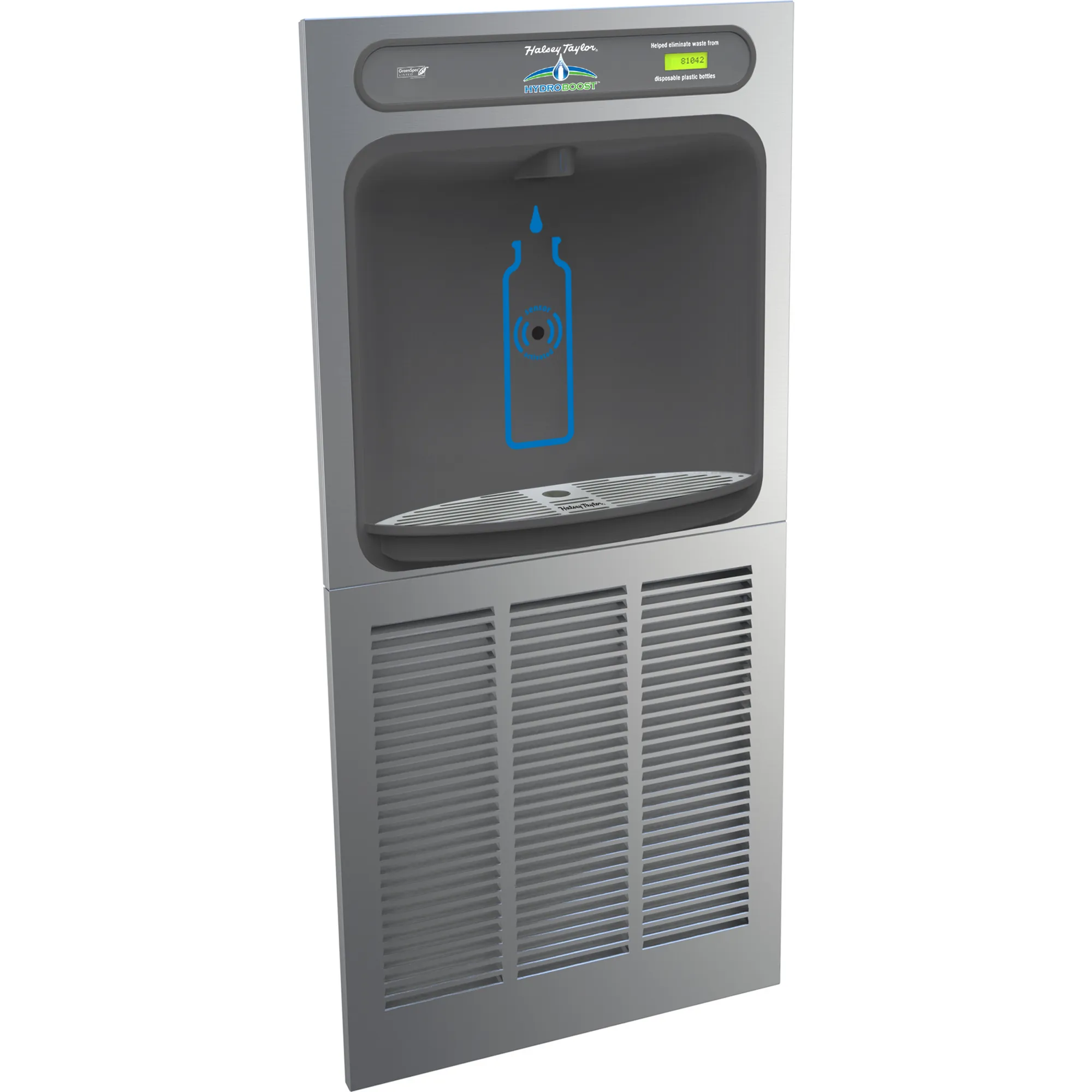

The Halsey Taylor HTHBGRN8-NF is an in-wall, refrigerated bottle filler. This model has a Stainless Steel color finish.
One of the most popular models, the HTHBGRN8-NF bottle filling station makes drinking water more practical, safe, and appealing than ever before.
The HTHBGRN8-NF features an energy-efficient 'Green' refrigeration system that is an estimated 35% more efficient than market standards, ensuring long-term savings on energy and cost.
Being a ‘hands-free’ unit, the HTHBGRN8-NF stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.
-
Fully recessed in-wall design
- Hands-free sensor activation
- ADA compliant
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
- Includes MFWS100 mounting frame
Halsey Taylor HTHBGRN8-NF resources:
- Halsey Taylor HTHBGRN8-NF CAD Symbols: - -
|
FILTERED? |
No |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
MOUNTING DETAILS |
Wall Mount (In-Wall Frame/Plate) |
|
CHILLING DETAILS |
8 GPH |
|
REFRIGERANT |
R-134 |
|
TEMPERATURE CAPACITY |
50°F drinking water |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
One station (bottle filler only, no drinking fountain) |
|
DIMENSIONS |
L: 19-3/4″ W: 3-1/2″ H: 40-13/16″ |
|
SHIPPING WEIGHT |
80 lbs |
|
PRODUCT COMPLIANCE |
|
Halsey Taylor HTHBGRN8-NF Includes
- Chiller
- Bottle Filler
- Mounting frame
Warranty
Refrigeration System (IF APPLICABLE)
Halsey Taylor HTHBGRN8-NF refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Halsey Taylor HTHBGRN8-NF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. .
Installation Notes
- Halsey Taylor HTHBGRN8-NF requires installation from licensed plumber.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
Maintenance
How to Clean
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
FAQ
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Does this model come with a Mounting Frame?
A: Yes, this model comes with an In-wall Carrier Mounting Frame.
*ASSEMBLED IN THE UNITED STATES.
